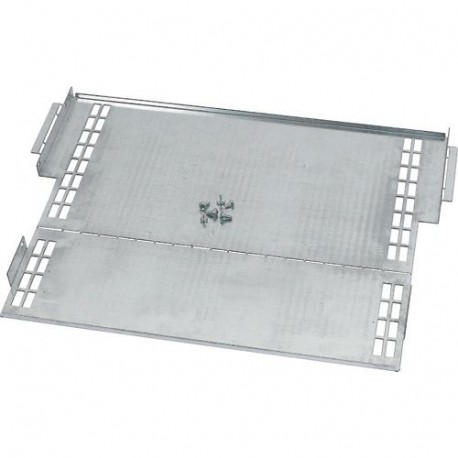

EATON - MOELLER XPNBCB0404 XPNBCB0404 289176 Y7-289176 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPNBCB0404 289176 Y7-289176 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPNBCB0404

289176

Y7-289176

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPNBCB0404 Eaton xEnergy Main LV systems LV switchgear. Partition, NZM4 connection-/busbar back area, WxD=425x400mm Partition, NZM4 connection-/busbar back area, WxD=425x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller power distribution component assembly kit, reference XPNBCB0404, compartmentalizes modular switchboard interiors to enhance operational safety. Enclosure partition kits prevent unwanted access to busbar and circuit breaker compartments during routine maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 420 mm
  • Height (EF000040): 35 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
289176
Model Code
XPNBCB0404
EAN
4015082891763
Product Length/Depth
630 mm
Product Height
35 mm
Product Width
420 mm
Product Weight
3.6 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 4a
Internal separation form 3a
Internal separation form 3b
Internal separation form 4b
