View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPNBCB0402 289174 Y7-289174 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPNBCB0402
289174
Y7-289174
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPNBCB0402

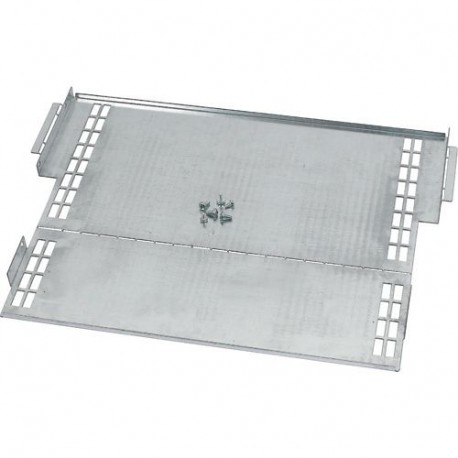

Eaton xEnergy Main LV systems LV switchgear. Partition, NZM4 connection-/busbar back area, WxD=425x200mm
Partition, NZM4 connection-/busbar back area, WxD=425x200mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
289174
Model Code
XPNBCB0402
EAN
4015082891749
Product Length/Depth
430 mm
Product Height
35 mm
Product Width
420 mm
Product Weight
2.5 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 3b
Internal separation form 4b
Internal separation form 4a
Internal separation form 3b
Internal separation form 4b
Internal separation form 4a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 420 mm |
| Height (EF000040) | 35 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
