View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPMMB1204 284166 Y7-284166 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPMMB1204
284166
Y7-284166
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPMMB1204

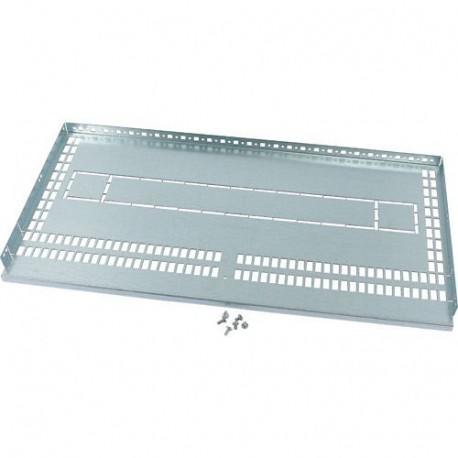

Partition, circuit breaker device-/device area, busbar back, WxD=1200x400mm
partition plate; connection space to dropper bar area and component mounting area; shape 2/4; main busbar at the rear; sheet steel; depth 400 mm, width 1200mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284166
Model Code
XPMMB1204
EAN
4015082841669
Product Length/Depth
1120 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
5 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1200 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 360 mm |
| Height (EF000040) | 30 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
