View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPMMB1004 133081 Y7-133081 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPMMB1004
133081
Y7-133081
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPMMB1004

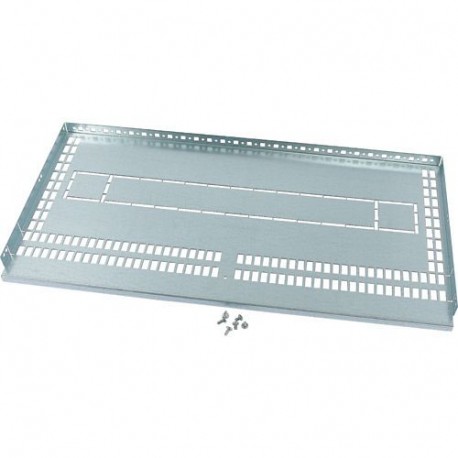

Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker device-/device area, busbar back, WxD=1000x400mm
Partition, circuit breaker device-/device area, busbar back, WxD=1000x400mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
133081
Model Code
XPMMB1004
EAN
4015081299447
Product Length/Depth
920 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
4.2 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Other
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b
Internal separation form 3a
Internal separation form 4b
Internal separation form 3b
Internal separation form 3a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 360 mm |
| Height (EF000040) | 30 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
