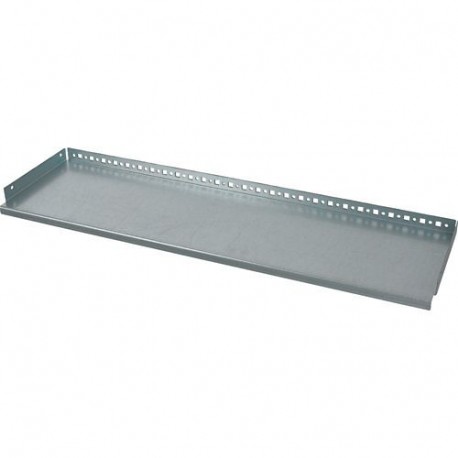

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPMMB0602 135264 Y7-135264 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPMMB0602
135264
Y7-135264
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPMMB0602
Eaton xEnergy Main LV systems LV switchgear. Partition, IZMX device-/device area, busbar back, WxD=600x400mm
Partition, IZMX device-/device area, busbar back, WxD=600x400mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
135264
Model Code
XPMMB0602
EAN
4015081320578
Product Length/Depth
210 mm
Product Height
50 mm
Product Width
540 mm
Product Weight
1.1 kg
Compliances
Contact Manufacturer
RoHS conform
RoHS conform
Certifications
Contact Manufacturer
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 540 mm |
| Height (EF000040) | 50 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
