View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPMMB0402 135263 Y7-135263 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPMMB0402
135263
Y7-135263
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPMMB0402

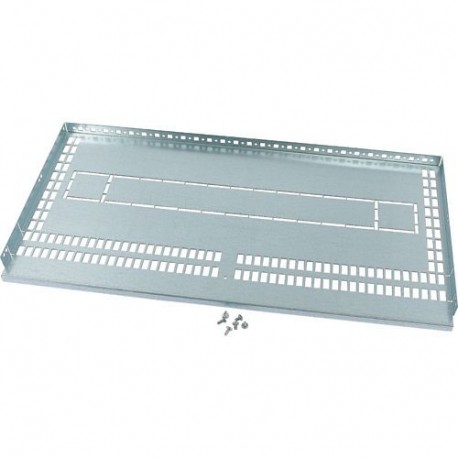

Eaton xEnergy Main LV systems LV switchgear. Partition, IZMX device-/device area, busbar back, WxD=425x400mm
Partition, IZMX device-/device area, busbar back, WxD=425x400mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
135263
Model Code
XPMMB0402
EAN
4015081320561
Product Length/Depth
210 mm
Product Height
50 mm
Product Width
340 mm
Product Weight
0.8 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 4b
Internal separation form 4a
Internal separation form 3a
Internal separation form 3b
Internal separation form 4a
Internal separation form 3a
Internal separation form 3b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 340 mm |
| Height (EF000040) | 50 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
