View larger
Images are for illustrative purposes only. Please refer to data sheet for details

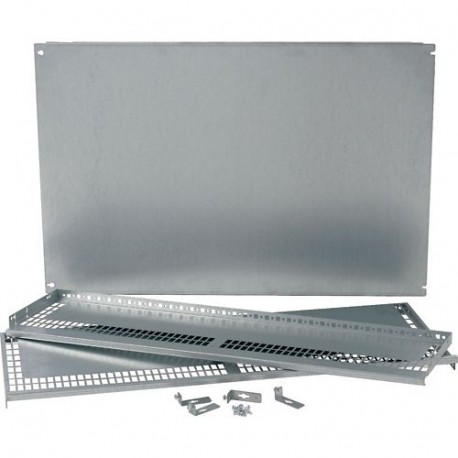

XPL10 285500 Y7-285500 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPL10
285500
Y7-285500
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPL10
Eaton xEnergy Main LV systems LV switchgear. Partitions, mounting kit, SL, Form 3b, D=1000mm
partition between feeder copper and connection copper on main busbar for SL; main busbar at the rear; shape 3b; width 1000 mm; sheet steel; including mounting material
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
285500
Model Code
XPL10
EAN
4015082855000
Product Length/Depth
920 mm
Product Height
50 mm
Product Width
670 mm
Product Weight
16 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 4a
Internal separation form 2b
Internal separation form 3a
Internal separation form 3b
Internal separation form 4a
Internal separation form 2b
Internal separation form 3a
Internal separation form 3b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 670 mm |
| Height (EF000040) | 50 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | No |
