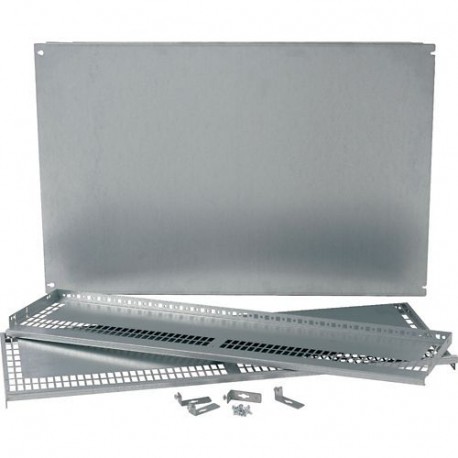

EATON - MOELLER XPL08 XPL08 284162 Y7-284162 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPL08 284162 Y7-284162 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPL08

284162

Y7-284162

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPL08 Eaton xEnergy Main LV systems LV switchgear. Partitions, mounting kit, SL, Form 3b, D=800mm partition between feeder copper rail and main copper busbar; partition plate; including fixing material; sheet steel; width 800mm; shape 3b

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power distribution components enclosure systems like the Eaton Moeller XPL08 provide structural framework support and modular internal compartmentalization for low-voltage switchgear installations. These assembly kits facilitate organized arrangement of electrical devices and maintain physical boundaries inside heavy-duty enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 610 mm
  • Height (EF000040): 35 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284162
Model Code
XPL08
EAN
4015082841621
Product Length/Depth
730 mm
Product Height
35 mm
Product Width
610 mm
Product Weight
10.6 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 2b
Internal separation form 4a
Internal separation form 2a
Internal separation form 3a
Internal separation form 3b

Product Datasheet
