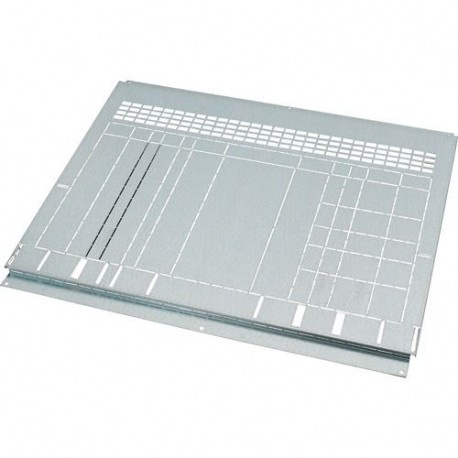

EATON - MOELLER XPIXBMCB0606 XPIXBMCB0606 135262 Y7-135262 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPIXBMCB0606 135262 Y7-135262 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPIXBMCB0606

135262

Y7-135262

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPIXBMCB0606 Eaton xEnergy Main LV systems LV switchgear. Partition, devices area/busbar area, HxW=600x600mm Partition, devices area/busbar area, HxW=600x600mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XPIXBMCB0606 is an individual enclosure component utilized in power distribution systems. This steel part provides structural integrity and compartmentalization to support complex switchgear layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 540 mm
  • Height (EF000040): 50 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
135262
Model Code
XPIXBMCB0606
EAN
4015081320554
Product Length/Depth
550 mm
Product Height
50 mm
Product Width
540 mm
Product Weight
1.6 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 4a
Internal separation form 2b
Internal separation form 4b
Internal separation form 3a
Internal separation form 3b
