EATON - MOELLER XPIXBMCB0604 XPIXBMCB0604 135261 Y7-135261 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPIXBMCB0604 135261 Y7-135261 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPIXBMCB0604

135261

Y7-135261

EATON - MOELLER

1 Pcs.

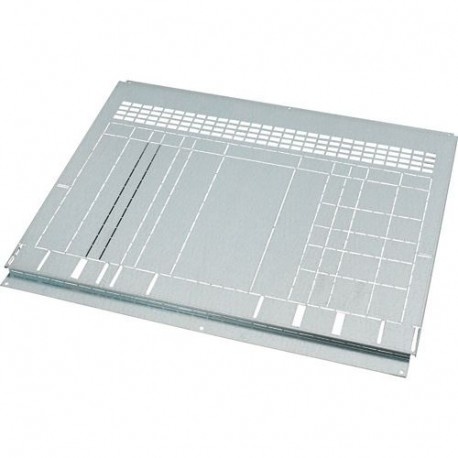

Power Distribution Components Enclosure Systems XPIXBMCB0604 Eaton xEnergy Main LV systems LV switchgear. Partition, devices area/busbar area, HxW=600x425mm Partition, devices area/busbar area, HxW=600x425mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XPIXBMCB0604 serves as a power distribution component within industrial enclosure systems to support structured internal partitioning. Enclosure accessories of this nature are deployed to isolate sections and enhance safety across complex control panel builds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 340 mm
  • Height (EF000040): 50 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
135261
Model Code
XPIXBMCB0604
EAN
4015081320547
Product Length/Depth
550 mm
Product Height
50 mm
Product Width
340 mm
Product Weight
1.1 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 2a
Internal separation form 4b
Internal separation form 2b
Internal separation form 3b

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
