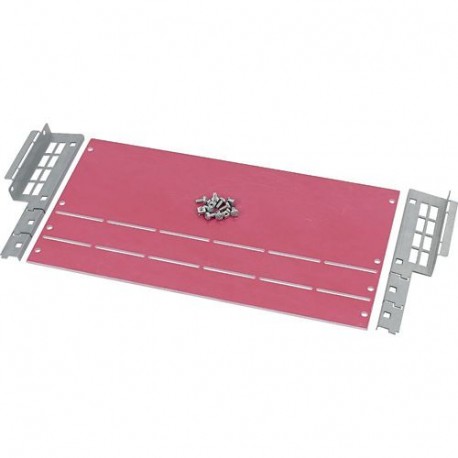

EATON - MOELLER XPIXBCB-H-0604 XPIXBCB-H-0604 133090 Y7-133090 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPIXBCB-H-0604 133090 Y7-133090 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPIXBCB-H-0604

133090

Y7-133090

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPIXBCB-H-0604 Eaton xEnergy Main LV systems LV switchgear. Partition, IZMX connection-/busbar back area, horizontal, WxD=600x400mm Partition, IZMX connection-/busbar back area, horizontal, WxD=600x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XPIXBCB-H-0604 power distribution component serves as a specialized barrier within enclosure systems to isolate distinct functional sections. Technicians install these components inside main distribution boards to support internal separation standards and prevent accidental contact with live parts. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 470 mm
  • Height (EF000040): 50 mm
  • Material (EF002169): Plastic
  • Colour (EF000007): Red
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
133090
Model Code
XPIXBCB-H-0604
EAN
4015081299539
Product Length/Depth
490 mm
Product Height
50 mm
Product Width
470 mm
Product Weight
2 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Other
Color
Red
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
600 mm
Material
Plastic
Suitable for
Internal separation form 2a
Internal separation form 4b
Internal separation form 2b
Internal separation form 3a
Internal separation form 3b
Internal separation form 4a

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
