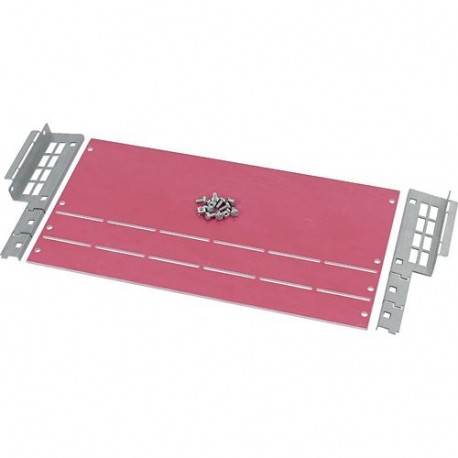

EATON - MOELLER XPIBCB-H-1004 XPIBCB-H-1004 133095 Y7-133095 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPIBCB-H-1004 133095 Y7-133095 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPIBCB-H-1004

133095

Y7-133095

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPIBCB-H-1004 Eaton xEnergy Main LV systems LV switchgear. Partition, IZM connection-/busbar back area, horizontal, WxD=1000x400mm Partition, IZM connection-/busbar back area, horizontal, WxD=1000x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XPIBCB-H-1004 is a plastic power distribution enclosure component designed to help organize and segregate internal sections of industrial switchboards. Modular partition pieces provide essential insulation and physical barriers for internal electrical components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 1000 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 150 mm
  • Height (EF000040): 50 mm
  • Material (EF002169): Plastic
  • Colour (EF000007): Red
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
133095
Model Code
XPIBCB-H-1004
EAN
4015081299584
Product Length/Depth
900 mm
Product Height
50 mm
Product Width
150 mm
Product Weight
2.9 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Other
Color
Red
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1000 mm
Material
Plastic
Suitable for
Internal separation form 4a
Internal separation form 3b
Internal separation form 2a
Internal separation form 2b
Internal separation form 4b
Internal separation form 3a

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
