EATON - MOELLER XPI26BMCB0610 XPI26BMCB0610 133084 Y7-133084 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPI26BMCB0610 133084 Y7-133084 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPI26BMCB0610

133084

Y7-133084

EATON - MOELLER

1 Pcs.

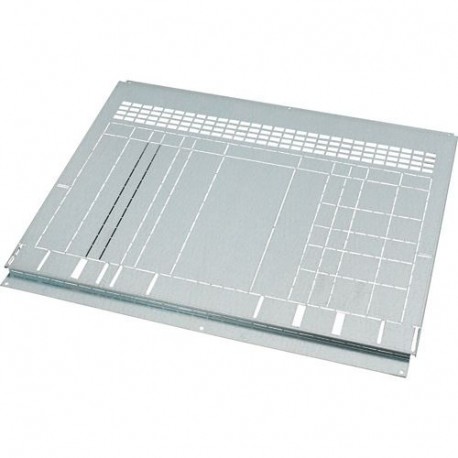

Power Distribution Components Enclosure Systems XPI26BMCB0610 Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker, IZM26, devices area/busbar area, HxW=600x1000mm Partition, circuit breaker, IZM26, devices area/busbar area, HxW=600x1000mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller power distribution component enclosure system accessory is designed for structured internal partitioning in complex switchgear setups. Internal dividers support compartmentalization standards, enhancing structural rigidity and electrical safety within large assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 1000 mm
  • Suitable for enclosure building depth (EF000327): 21 mm
  • Width (EF000008): 920 mm
  • Height (EF000040): 50 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
133084
Model Code
XPI26BMCB0610
EAN
4015081299478
Product Length/Depth
650 mm
Product Height
50 mm
Product Width
920 mm
Product Weight
5 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
21 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Internal separation form 2b
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
Internal separation form 3b
Internal separation form 2a
