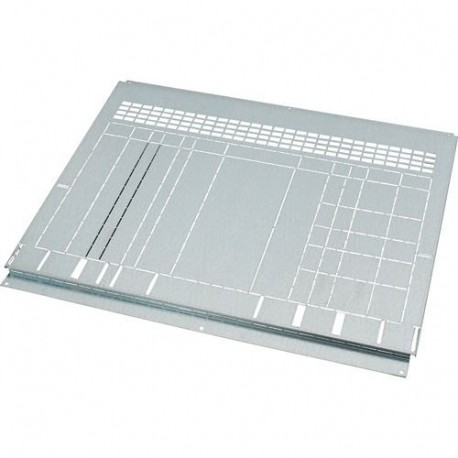

EATON - MOELLER XPI26BMCB0608 XPI26BMCB0608 135260 Y7-135260 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPI26BMCB0608 135260 Y7-135260 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPI26BMCB0608

135260

Y7-135260

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPI26BMCB0608 Eaton xEnergy Main LV systems LV switchgear. Partition, IZM26, devices area/busbar area, HxW=600x800mm Partition, IZM26, devices area/busbar area, HxW=600x800mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XPI26BMCB0608 is an Eaton Electric power distribution components enclosure system designed for organizing and sectioning internal electrical assemblies. Enclosure systems and structural separation elements are utilized inside industrial control panels to isolate functional areas, support modular builds, and protect internal components from environmental factors or accidental contact.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 22 mm
  • Width (EF000008): 760 mm
  • Height (EF000040): 40 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
135260
Model Code
XPI26BMCB0608
EAN
4015081320530
Product Length/Depth
620 mm
Product Height
40 mm
Product Width
760 mm
Product Weight
2.6 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
22 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 3b
Internal separation form 4b
Internal separation form 2a
Internal separation form 4a
Internal separation form 2b
