EATON - MOELLER XPFMM06 XPFMM06 284148 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFMM06 284148 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPFMM06

284148

EATON - MOELLER

1 Pcs.

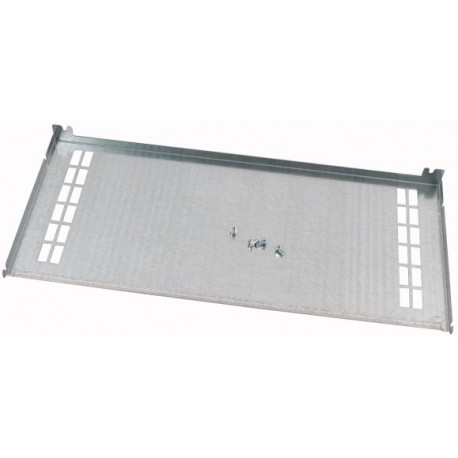

Power Distribution Components Enclosure Systems Partition, F, switchgear area/switchgear area, W=600mm Partition plate, component mounting area to component mounting area, main busbar is behind, steel sheet, width 600mm,

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller power distribution component enclosure system assembly kit, part number XPFMM06, helps configure compartmentalized industrial switchboards. These enclosure structural elements provide robust internal separation to protect sensitive devices and maintain compliance with distribution standards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): None mm
  • Width (EF000008): 220 mm
  • Height (EF000040): 40 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • With cable entry (EF000325): false
  • With lock (EF006306): false
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): false
  • For internal separation form 2b (EF009587): false
  • For internal separation form 3a (EF009588): true
  • For internal separation form 3b (EF009589): true
  • For internal separation form 4a (EF009590): true

More info

▲
Partition, F, switchgear area/switchgear area, W=600mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
600 mm
Suitable for enclosure building depth
0 mm
Width
510 mm
Height
32 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
