View larger
Images are for illustrative purposes only. Please refer to data sheet for details

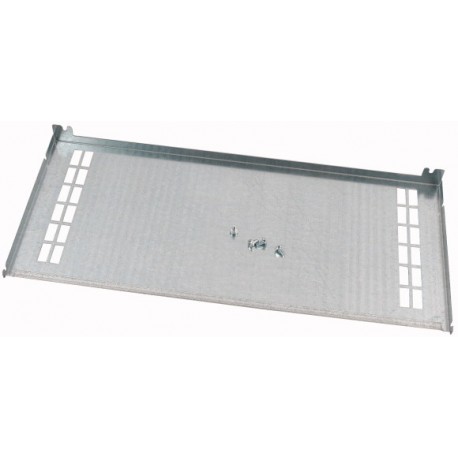

XPFMM04 284147 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPFMM04
284147
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
Partition, F, switchgear area/switchgear area, W=425mm
Partition plate, component mounting area to component mounting area, main busbar is behind, steel sheet, width 425 mm,
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Partition, F, switchgear area/switchgear area, W=425mm
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
425 mm
Suitable for enclosure building depth
0 mm
Width
335 mm
Height
32 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Width (EF000008) | 250 mm |
| Height (EF000040) | 25 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| With cable entry (EF000325) | No |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
