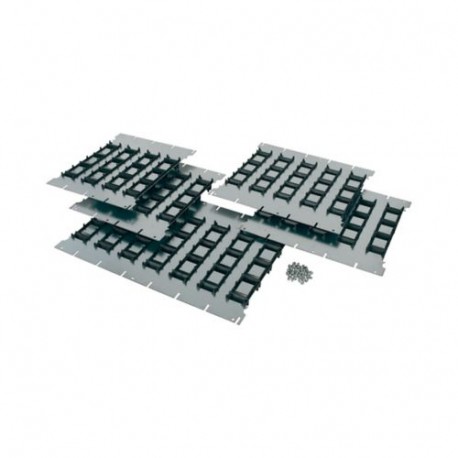

EATON - MOELLER XPFDM-65-MC XPFDM-65-MC 151215 Y7-151215 EATON ELECTRIC Shutter kit, device area/dropper bar, up to 65kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFDM-65-MC 151215 Y7-151215 EATON ELECTRIC Shutter kit, device area/dropper bar, up to 65kA

XPFDM-65-MC

151215

Y7-151215

EATON - MOELLER

1 Pcs.

Shutter kit, device area/dropper bar, up to 65kA XPFDM-65-MC Eaton xEnergy Main LV systems LV switchgear. Shutter kit, device area/dropper bar, up to 65kA Front plate for component mounting area/dropper bar, 35 kA, 50 kA and 65 kA, designed for 1000-A and 2000-A dropper bar, consisting of 5-piece sheet metal partition, incl. plastic parts for contact separation, includes screw accessories

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A shutter kit, device area/dropper bar, up to 65kA like the XPFDM-65-MC 151215 Y7-151215 EATON ELECTRIC safeguards operators by automatically blocking access to energized busbar sections when functional units are withdrawn. These kits are essential safety accessories in high-capacity modular switchgear assemblies.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 34 mm
  • Width (EF000008): 350 mm
  • Height (EF000040): 100 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Individual part
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151215
Model Code
XPFDM-65-MC
EAN
4015081480104
Product Length/Depth
680 mm
Product Height
100 mm
Product Width
350 mm
Product Weight
7 kg
Compliances
RoHS conform

Product specifications

Construction type
Individual part
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
34 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 2b
Internal separation form 3b
Internal separation form 4b
Internal separation form 2a
Internal separation form 4a

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
