View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPFCD2008 284133 Y7-284133 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPFCD2008
284133
Y7-284133
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPFCD2008

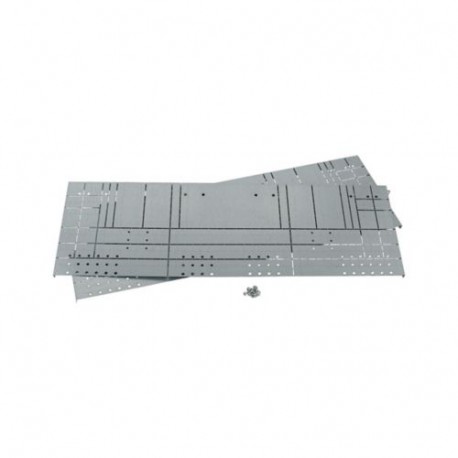

Eaton xEnergy Main LV systems LV switchgear. Partition, F, connection-/DB area, D=800mm
partition in the distribution section to separate the connection space and distribution space; section depth 800mm, height 2000 mm; galvanized sheet steel
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284133
Model Code
XPFCD2008
EAN
4015082841331
Product Length/Depth
950 mm
Product Height
50 mm
Product Width
550 mm
Product Weight
8.5 kg
Compliances
Contact Manufacturer
RoHS conform
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
950 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 2a
Internal separation form 2b
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 2a
Internal separation form 2b
Internal separation form 3b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 950 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 550 mm |
| Height (EF000040) | 50 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
