EATON - MOELLER XPFCB08/10 XPFCB08/10 110266 Y7-110266 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFCB08/10 110266 Y7-110266 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPFCB08/10

110266

Y7-110266

EATON - MOELLER

1 Pcs.

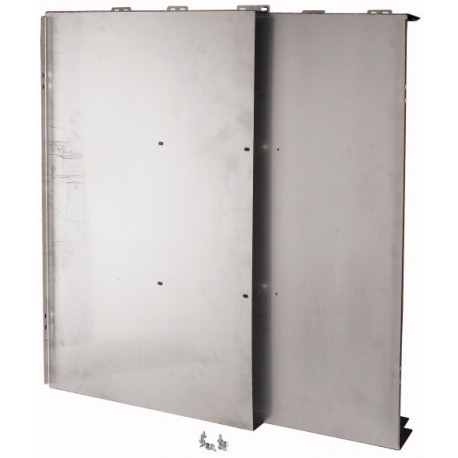

Power Distribution Components Enclosure Systems XPFCB08/10 Partition, F, connection-/busbar back area, W=800/1000mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number XPFCB08/10 is a power distribution enclosure component designed to structure internal compartments. Assembly kits of this nature establish secure barriers between live components and wiring zones within industrial switchgear installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 30 mm
  • Width (EF000008): 525 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Stainless steel
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲
EL-Nummer (Norway)
2465763
Partition, F, connection-/busbar back area, W=800/1000mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
800 mm
Suitable for enclosure building depth
30 mm
Width
525 mm
Height
1150 mm
Material
Stainless steel
Surface finishing
Other
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
