EATON - MOELLER XPFCB06 XPFCB06 284746 Y7-284746 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFCB06 284746 Y7-284746 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPFCB06

284746

Y7-284746

EATON - MOELLER

1 Pcs.

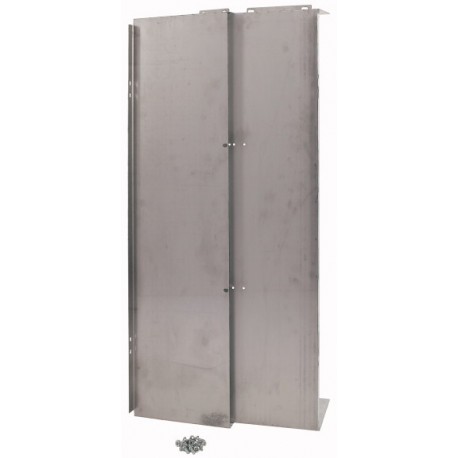

Power Distribution Components Enclosure Systems XPFCB06 Partition, F, connection-/busbar back area, W=600mm partition between feeder copper rail and main copper busbar; partition plate; including fixing material; sheet steel; width 600mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number XPFCB06 is a power distribution component enclosure system utilized within modular electrical installations to segment interior spaces and organize internal apparatus. Enclosure system components support proper layout organization and physical segregation inside industrial switchgear assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 415 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Stainless steel
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲
EL-Nummer (Norway)
2472995
Partition, F, connection-/busbar back area, W=600mm
partition between feeder copper rail and main copper busbar; partition plate; including fixing material; sheet steel; width 600mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
600 mm
Suitable for enclosure building depth
800 mm
Width
600 mm
Height
1145 mm
Material
Stainless steel
Surface finishing
Other
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
