EATON - MOELLER XPFCB04-MC XPFCB04-MC 151213 Y7-151213 EATON ELECTRIC Partition set, connection-/MBB-area, for W 400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFCB04-MC 151213 Y7-151213 EATON ELECTRIC Partition set, connection-/MBB-area, for W 400mm

XPFCB04-MC

151213

Y7-151213

EATON - MOELLER

1 Pcs.

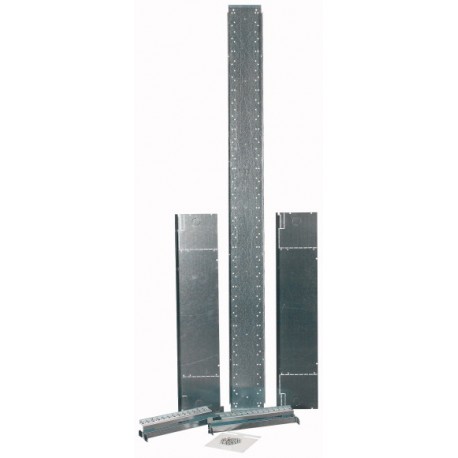

Partition set, connection-/MBB-area, for W=400mm XPFCB04-MC Cable connection area/main busbar partition, module width 600 mm, consisting of: mounting plate for terminal installation, 2 partition plates, 2x mounting profile, includes all screw accessories

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XPFCB04-MC partition set establishes clean separation between connection terminals and main busbar zones in modular enclosures. This assembly kit ensures safe and compliant compartmentalization for electrical distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 400 mm
  • Suitable for enclosure building depth (EF000327): 90 mm
  • Width (EF000008): 210 mm
  • Height (EF000040): 40 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲
Partition set, connection-/MBB-area, for W=400mm
Cable connection area/main busbar partition, module width 600 mm, consisting of: mounting plate for terminal installation, 2 partition plates, 2x mounting profile, includes all screw accessories

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
400 mm
Suitable for enclosure building depth
90 mm
Width
400 mm
Height
1978 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
