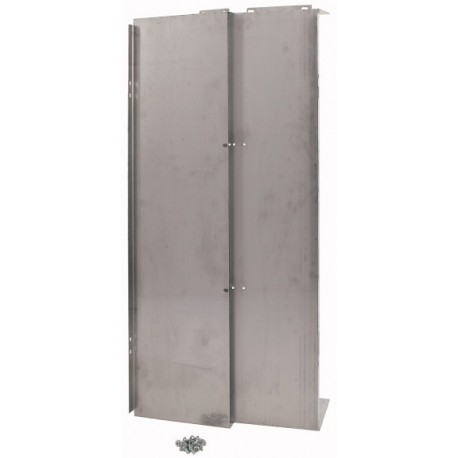

EATON - MOELLER XPFCB04 XPFCB04 284119 Y7-284119 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFCB04 284119 Y7-284119 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPFCB04

284119

Y7-284119

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPFCB04 Partition, F, connection-/busbar back area,W=425mm accessories for outgoing section: partition for internal subdivision, main busbars at the top; BBT shape 4, cable connection area/connection space separator; module width 600 mm, module height 300 mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XPFCB04 is an enclosure system power distribution component designed to facilitate internal modular partitioning within industrial switchgear assemblies. Such components provide physical segregation between distinct functional sections of a panel, enhancing safety and operational continuity by preventing accidental contact with live parts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 230 mm
  • Height (EF000040): 35 mm
  • Material (EF002169): Stainless steel
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲
EL-Nummer (Norway)
2472994
Partition, F, connection-/busbar back area,W=425mm
accessories for outgoing section: partition for internal subdivision, main busbars at the top; BBT shape 4, cable connection area/connection space separator; module width 600 mm, module height 300 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
425 mm
Suitable for enclosure building depth
800 mm
Width
425 mm
Height
1050 mm
Material
Stainless steel
Surface finishing
Other
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
