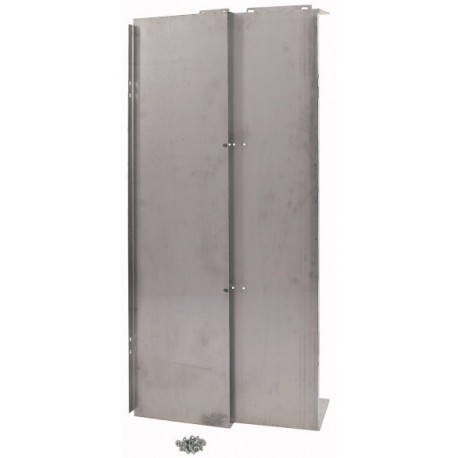

EATON - MOELLER XPFCB02 XPFCB02 284745 Y7-284745 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPFCB02 284745 Y7-284745 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPFCB02

284745

Y7-284745

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPFCB02 Partition, F, connection-/busbar back area, W=200mm partition between feeder copper rail and main copper busbar; partition plate; including fixing material; sheet steel; width 200 mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XPFCB02 is a power distribution component engineered to create structured internal compartments inside modular electrical enclosures. By separating functional units, it enhances protection against internal electrical faults and supports organized cable routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 200 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 130 mm
  • Height (EF000040): 35 mm
  • Material (EF002169): Stainless steel
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes

More info

▲
EL-Nummer (Norway)
2472993
Partition, F, connection-/busbar back area, W=200mm
partition between feeder copper rail and main copper busbar; partition plate; including fixing material; sheet steel; width 200 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
200 mm
Suitable for enclosure building depth
800 mm
Width
200 mm
Height
1145 mm
Material
Stainless steel
Surface finishing
Other
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
