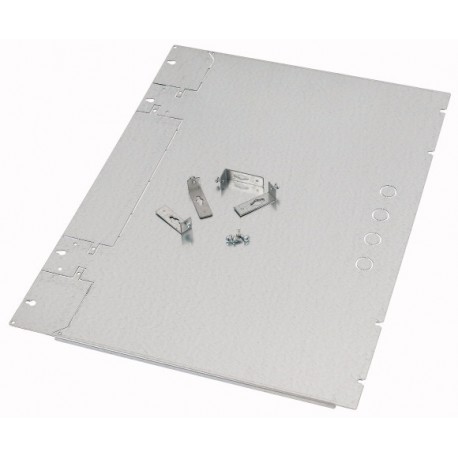

EATON - MOELLER XPBMB0612 XPBMB0612 284110 Y7-284110 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBMB0612 284110 Y7-284110 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPBMB0612

284110

Y7-284110

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPBMB0612 Partition, CB devices/busbar back area, HxW=600x1200mm Partition / mounting plate suitable for XP panels with 1/3 pitch, with a height of 600mm, width of 1000mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
EL-Nummer (Norway)
2472977
Partition, CB devices/busbar back area, HxW=600x1200mm
Partition / mounting plate suitable for XP panels with 1/3 pitch, with a height of 600mm, width of 1000mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
1200 mm
Suitable for enclosure building depth
8 mm
Width
1089 mm
Height
642 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes

ETIM for 284110 Cabinets and enclosures (EC002525)
Feature Name Feature Value
Modular spacing (EF000394) 12.5 mm
Suitable for enclosure building width (EF000326) 1200 mm
Suitable for enclosure building depth (EF000327) 8 mm
Width (EF000008) 650 mm
Height (EF000040) 25 mm
Material (EF002169) Steel
Surface finishing (EF006569) Galvanised
Colour (EF000007) Stainless steel
RAL-number (EF000116) 0
With cable entry (EF000325) No
Number of height units (EF003561) 0
With lock (EF006306) No
Construction type (EF000767) Assembly kit
For internal separation form 2a (EF009586) Yes
For internal separation form 2b (EF009587) Yes
For internal separation form 3a (EF009588) Yes
For internal separation form 3b (EF009589) Yes
For internal separation form 4a (EF009590) Yes
For internal separation form 4b (EF009591) Yes
