EATON - MOELLER XPBMB0608 XPBMB0608 284109 Y7-284109 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBMB0608 284109 Y7-284109 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPBMB0608

284109

Y7-284109

EATON - MOELLER

1 Pcs.

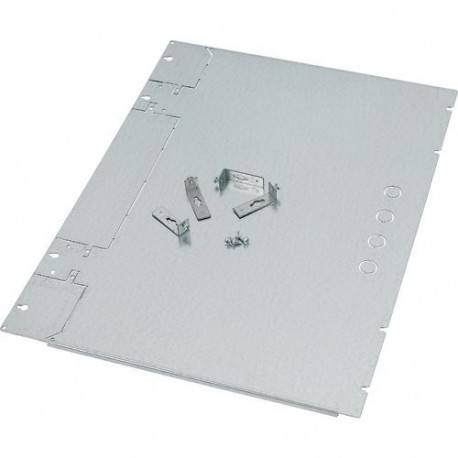

Power Distribution Components Enclosure Systems XPBMB0608 Eaton xEnergy Main LV systems LV switchgear. Partition, CB devices/busbar back area, HxW=600x800mm Partition / mounting plate suitable for XP panels with 1/3 pitch, with a height of 600mm, width of 800mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller power distribution component enclosure accessory, part number XPBMB0608, provides structural division and modular organization within industrial electrical enclosures. Such components support internal layout configurations while maintaining robust mechanical stability across complex switchboard assemblies.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 8 mm
  • Width (EF000008): 650 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284109
Model Code
XPBMB0608
EAN
4015082841096
Product Length/Depth
695 mm
Product Height
30 mm
Product Width
650 mm
Product Weight
5.8 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
8 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
Internal separation form 2a
Internal separation form 2b
