EATON - MOELLER XPBMB0606 XPBMB0606 284108 Y7-284108 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBMB0606 284108 Y7-284108 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPBMB0606

284108

Y7-284108

EATON - MOELLER

1 Pcs.

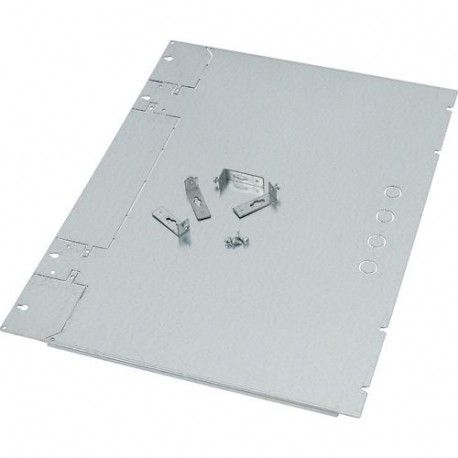

Power Distribution Components Enclosure Systems XPBMB0606 Eaton xEnergy Main LV systems LV switchgear. Partition, CB devices/busbar back area, HxW=600x600mm Partition / mounting plate suitable for XP panels with 1/3 pitch, with a height of 600mm, width of 600mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power distribution components enclosure systems element from Eaton Moeller (XPBMB0606) provides structural partitioning to separate internal switchgear zones and support orderly cable routing. These assembly kits are standard additions for building compartmentalized electrical distribution boards that require high levels of operator safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 8 mm
  • Width (EF000008): 500 mm
  • Height (EF000040): 20 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284108
Model Code
XPBMB0606
EAN
4015082841089
Product Length/Depth
650 mm
Product Height
20 mm
Product Width
500 mm
Product Weight
3.4 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
8 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 2a
Internal separation form 2b
Internal separation form 3a
Internal separation form 4b
Internal separation form 4a
