EATON - MOELLER XPBMB0506 XPBMB0506 133066 Y7-133066 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBMB0506 133066 Y7-133066 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPBMB0506

133066

Y7-133066

EATON - MOELLER

1 Pcs.

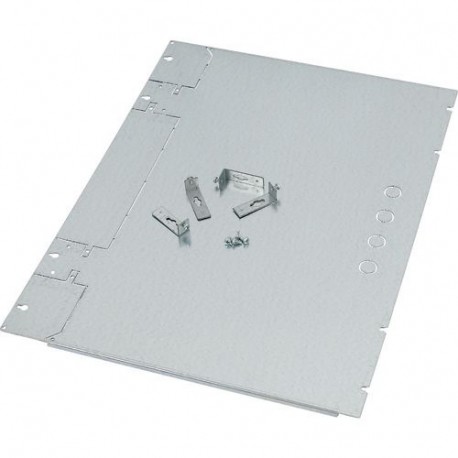

Power Distribution Components Enclosure Systems XPBMB0506 Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker, IZM26, switchgear area/busbar area, HxW=500x600mm Partition, circuit breaker, IZM26, switchgear area/busbar area, HxW=500x600mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller power distribution components enclosure systems (part XPBMB0506) function as structural partitioning and organization elements within heavy-duty industrial switchgear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 8 mm
  • Width (EF000008): 550 mm
  • Height (EF000040): 25 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
133066
Model Code
XPBMB0506
EAN
4015081299294
Product Length/Depth
650 mm
Product Height
25 mm
Product Width
550 mm
Product Weight
4 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
8 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 2a
Internal separation form 2b
Internal separation form 3b
Internal separation form 4b
