EATON - MOELLER XPBCB0604 XPBCB0604 284102 Y7-284102 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPBCB0604 284102 Y7-284102 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPBCB0604

284102

Y7-284102

EATON - MOELLER

1 Pcs.

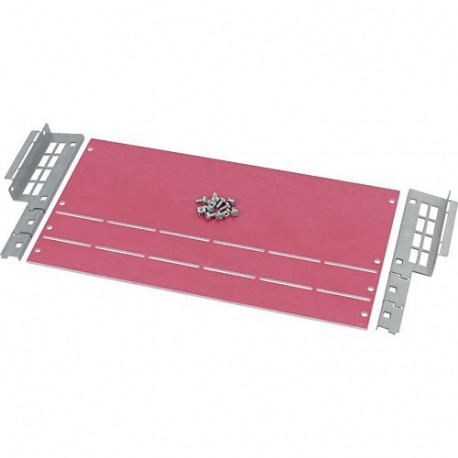

Power Distribution Components Enclosure Systems XPBCB0604 Eaton xEnergy Main LV systems LV switchgear. Partition, CB connection-/busbar back area, WxD=600x400mm Partition / mounting plate suitable for XP panels with 1/3 pitch, with a depth of 400mm, width of 600mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller power distribution components enclosure systems (XPBCB0604 284102) provide compartmentalization and structural organization for electrical distribution assemblies. Enclosure separation kits are typically installed to compartmentalize busbars, cabling, and switching devices for enhanced safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 280 mm
  • Height (EF000040): 40 mm
  • Material (EF002169): Steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes
  • For internal separation form 3b (EF009589): Yes
  • For internal separation form 4a (EF009590): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284102
Model Code
XPBCB0604
EAN
4015082841027
Product Length/Depth
500 mm
Product Height
40 mm
Product Width
280 mm
Product Weight
2.4 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Other
Color
Other
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 2b
Internal separation form 4a
Internal separation form 4b
Internal separation form 3a
Internal separation form 2a
