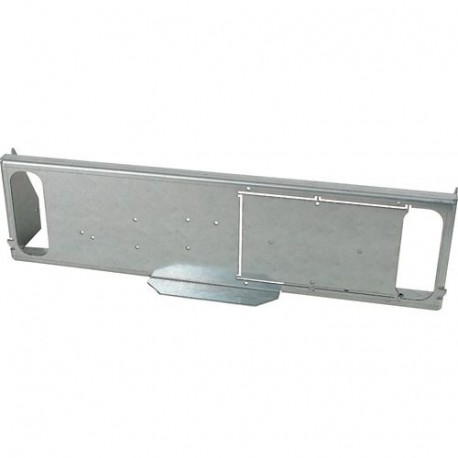

EATON - MOELLER XMW1806M XMW1806M 152667 EATON ELECTRIC Mounting plate for 450mm bucket View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW1806M 152667 EATON ELECTRIC Mounting plate for 450mm bucket

XMW1806M

152667

EATON - MOELLER

1 Pcs.

Mounting plate;for 450mm bucket XMW1806M MCC individual components: mounting plate for withdrawable unit, height 450mm, consisting of: mounting plate for NZM/PKZ, mounting plate for auxiliary current contacts, mounting plate for contactor, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilize this Eaton Moeller XMW1806M 152667 EATON ELECTRIC Mounting plate for 450mm bucket to install internal components and control devices within modular enclosure buckets. Interior mounting plates give technicians a flat, pre-drilled surface to secure electrical instruments and wiring accessories. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 440 mm
  • Height (EF000040): 280 mm
  • Depth (EF000049): 510 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
152667
Model Code
XMW1806M
EAN
4015081494057
Product Length/Depth
510 mm
Product Height
280 mm
Product Width
440 mm
Product Weight
5 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
