View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMW1806D 155246 Y7-155246 EATON ELECTRIC 155246 XMW1806D
XMW1806D
155246
Y7-155246
EATON - MOELLER
1 Pcs.
155246 XMW1806D
XMW1806D

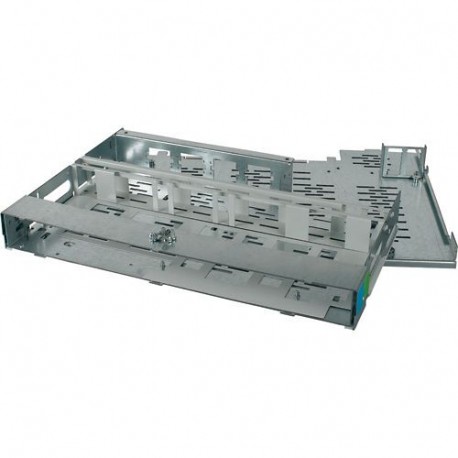

Eaton xEnergy Main LV systems LV switchgear. Drawer, H=450mm
MCC individual components: withdrawable unit main module, height 450mm, consisting of: base module, horizontal partition, mounting plate for PKZ/NZM, mounting plate for auxiliary current contacts, PVC shielding plate, indicator strips/position indicator, includes all screw accessories and various fixing materials. The fronts need to be ordered separately for all modules (not included as standard with the drawer; the front is supplied as a compartment door).
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
155246
Model Code
XMW1806D
EAN
4015081519842
Product Length/Depth
420 mm
Product Height
455 mm
Product Width
565 mm
Product Weight
18 kg
Compliances
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 565 mm |
| Height (EF000040) | 455 mm |
| Depth (EF000049) | 420 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
