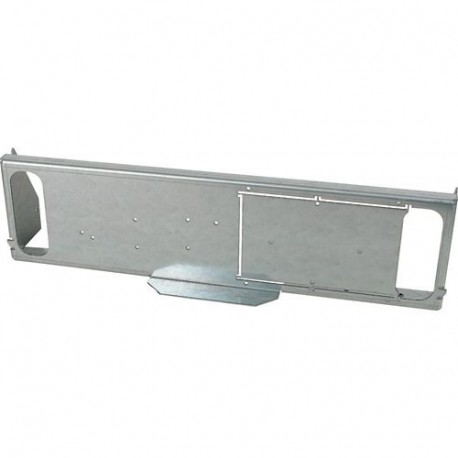

EATON - MOELLER XMW1206M XMW1206M 152666 EATON ELECTRIC Mounting plate for 300mm bucket View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW1206M 152666 EATON ELECTRIC Mounting plate for 300mm bucket

XMW1206M

152666

EATON - MOELLER

1 Pcs.

Mounting plate;for 300mm bucket XMW1206M MCC individual components: mounting plate for withdrawable unit, height 300mm, consisting of: mounting plate for NZM/PKZ, mounting plate for auxiliary current contacts, mounting plate for contactor, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XMW1206M 152666 EATON ELECTRIC Mounting plate for 300mm bucket from Eaton Moeller is utilized inside electrical enclosures to provide a rigid foundation for installing components, control devices, and terminal hardware. Mounting plates streamline panel building by allowing off-site pre-assembly of internal electrical sub-systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 290 mm
  • Height (EF000040): 130 mm
  • Depth (EF000049): 510 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
152666
Model Code
XMW1206M
EAN
4015081494040
Product Length/Depth
510 mm
Product Height
130 mm
Product Width
290 mm
Product Weight
2.8 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
