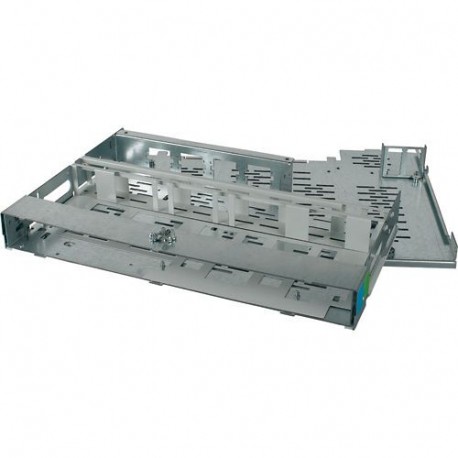

EATON - MOELLER XMW1206D XMW1206D 155245 Y7-155245 EATON ELECTRIC 155245 XMW1206D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW1206D 155245 Y7-155245 EATON ELECTRIC 155245 XMW1206D

XMW1206D

155245

Y7-155245

EATON - MOELLER

1 Pcs.

155245 XMW1206D XMW1206D Eaton xEnergy Main LV systems LV switchgear. Drawer, H=300mm MCC individual components: withdrawable unit main module, height 300mm, consisting of: base module, horizontal partition, mounting plate for PKZ/NZM, mounting plate for auxiliary current contacts, PVC shielding plate, indicator strips/position indicator, includes all screw accessories and various fixing materials. The fronts need to be ordered separately for all modules (not included as standard with the drawer; the front is supplied as a compartment door).

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Expanding enclosure functionality and structural integrity is easily achieved using the XMW1206D 155245 Y7-155245 Eaton Electric 155245 XMW1206D. Structural frame elements and modular insert components provide the mechanical skeleton necessary to build out complex, multi-bay electrical distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 565 mm
  • Height (EF000040): 305 mm
  • Depth (EF000049): 420 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
155245
Model Code
XMW1206D
EAN
4015081519835
Product Length/Depth
420 mm
Product Height
305 mm
Product Width
565 mm
Product Weight
12 kg
Compliances
RoHS conform

Product specifications

Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
