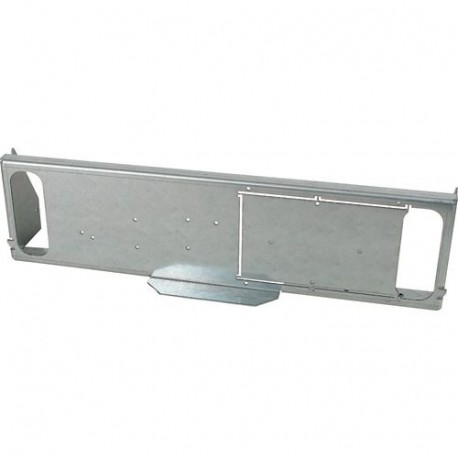

EATON - MOELLER XMW0906M XMW0906M 152665 EATON ELECTRIC Mounting plate for 225mm bucket View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW0906M 152665 EATON ELECTRIC Mounting plate for 225mm bucket

XMW0906M

152665

EATON - MOELLER

1 Pcs.

Mounting plate;for 225mm bucket XMW0906M MCC individual components: mounting plate for withdrawable unit, height 225mm, consisting of: mounting plate for NZM/PKZ, mounting plate for auxiliary current contacts, mounting plate for contactor, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XMW0906M mounting plate for 225mm bucket provides a solid mechanical foundation for installing electrical devices and control gear within modular panel setups. Backplates of this type allow engineers to securely fasten components inside industrial enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 210 mm
  • Height (EF000040): 130 mm
  • Depth (EF000049): 510 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
152665
Model Code
XMW0906M
EAN
4015081494033
Product Length/Depth
510 mm
Product Height
130 mm
Product Width
210 mm
Product Weight
1.7 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
