EATON - MOELLER XMW0906E-V XMW0906E-V 152672 Y7-152672 EATON ELECTRIC Front plate, IP31, empty, H 225mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW0906E-V 152672 Y7-152672 EATON ELECTRIC Front plate, IP31, empty, H 225mm

XMW0906E-V

152672

Y7-152672

EATON - MOELLER

1 Pcs.

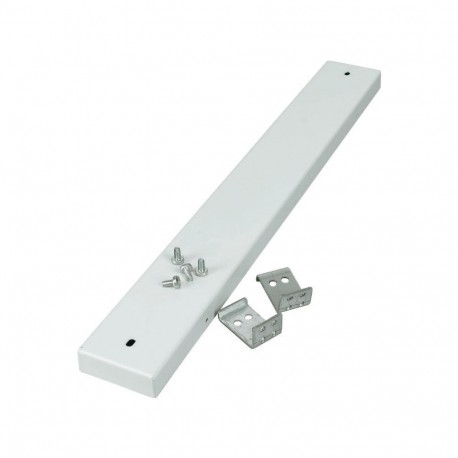

Front plate, IP31, empty, H=225mm XMW0906E-V Eaton xEnergy Main LV systems LV switchgear. Front plate, IP31, empty, H=225mm, grey MCC individual components: blanking strip, height 225mm, IP31 ventilated front plate, gray RAL 7035, consisting of: blanking strip, mounting angle bracket, horizontal partition, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The XMW0906E-V 152672 Y7-152672 EATON ELECTRIC Front plate, IP31, empty, H 225mm is an empty front plate assembly designed to cover unused modular panel cutouts in industrial distribution boards.

Empty modular plates maintain operator safety and aesthetic uniformity by blanking off open sections within switchgear enclosures.

Current pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 570 mm
  • Height (EF000040): 225 mm
  • Depth (EF000049): 50 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
152672
Model Code
XMW0906E-V
EAN
4015081494101
Product Length/Depth
50 mm
Product Height
225 mm
Product Width
570 mm
Product Weight
2.4 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
