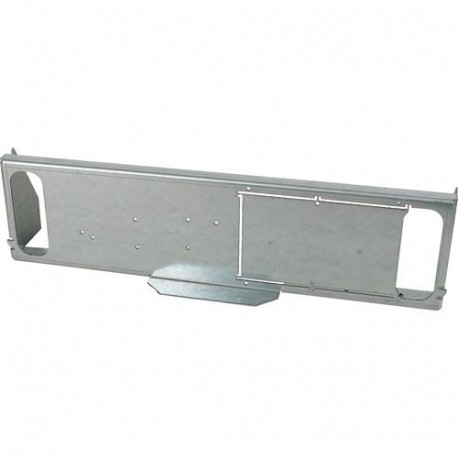

EATON - MOELLER XMW0606M XMW0606M 152664 EATON ELECTRIC Mounting plate for 150mm bucket View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW0606M 152664 EATON ELECTRIC Mounting plate for 150mm bucket

XMW0606M

152664

EATON - MOELLER

1 Pcs.

Mounting plate;for 150mm bucket XMW0606M MCC individual components: mounting plate for withdrawable unit, height 150mm, consisting of: mounting plate for NZM/PKZ, mounting plate for auxiliary current contacts, mounting plate for contactor, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Eaton Moeller, the XMW0606M mounting plate provides a stable mechanical foundation for securing modular buckets and electrical hardware inside industrial control cabinets.

Mounting plates allow technicians to pre-assemble control gear before integration into larger distribution framework assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 140 mm
  • Height (EF000040): 130 mm
  • Depth (EF000049): 510 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
152664
Model Code
XMW0606M
EAN
4015081494026
Product Length/Depth
510 mm
Product Height
130 mm
Product Width
140 mm
Product Weight
1.5 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
