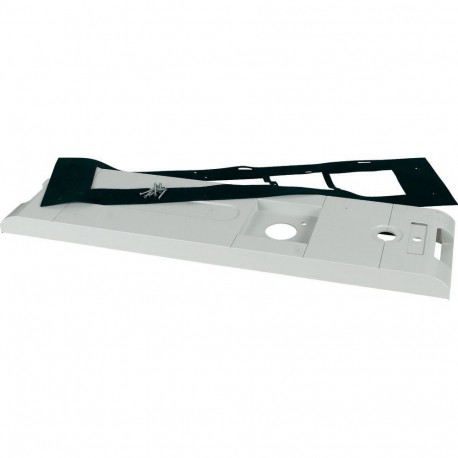

EATON - MOELLER XMW0306-FB XMW0306-FB 152640 EATON ELECTRIC Front plate, steel, H 75mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW0306-FB 152640 EATON ELECTRIC Front plate, steel, H 75mm

XMW0306-FB

152640

EATON - MOELLER

1 Pcs.

Front plate, steel, H=75mm Front blanking plate, height 75mm, MCC individual parts: front for withdrawable unit, for a total of 7 RMQ22 components, a rotary mechanism for main switches, one opening with 22, 5 mm for the button for the mechanical interlock. Consisting of: plastic front plate, gasket, includes screw accessories

Automation > Front plate (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This steel front plate provides a secure barrier for modular control cabinet spaces, helping protect internal electrical assemblies from dust and contact. The Eaton Moeller part XMW0306-FB is built with durable plastic materials to fit specific enclosure dimensions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 80 mm
  • Height (EF000040): 35 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 75 mm
  • Number of height units (EF003561): 0
  • Material (EF002169): Plastic

More info

▲
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Front plate (switchgear cabinet) (EC000456)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Front plate (electrical cabinet) ([email protected] [AKE465013])
Width
mm 565
Height
mm 72
Suitable for enclosure building width
mm 600
Suitable for enclosure building height
mm 75
Number of height units
0
Material
Plastic
Surface finishing
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
