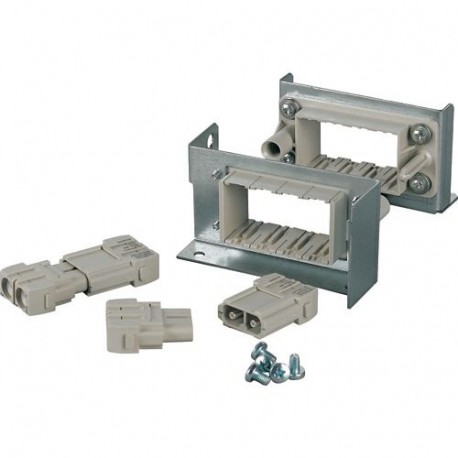

XMW-OC-M-3 155273 EATON ELECTRIC Mounting plate for output terminals 350A 300mm
XMW-OC-M-3
155273
EATON - MOELLER
1 Pcs.
Mounting plate;for output terminals;350A 300mm
XMW-OC-M-3
MCC individual components: mounting bracket for outgoer main current contacts for a current of up to 350 A, height = 300 mm, consisting of: 2 retaining brackets (1 for withdrawable unit, 1x for horizontal partition), includes screw accessories
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
155273
Model Code
XMW-OC-M-3
EAN
4015081520015
Product Length/Depth
100 mm
Product Height
165 mm
Product Width
165 mm
Product Weight
1 kg
Compliances
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 165 mm |
| Height (EF000040) | 165 mm |
| Depth (EF000049) | 100 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
