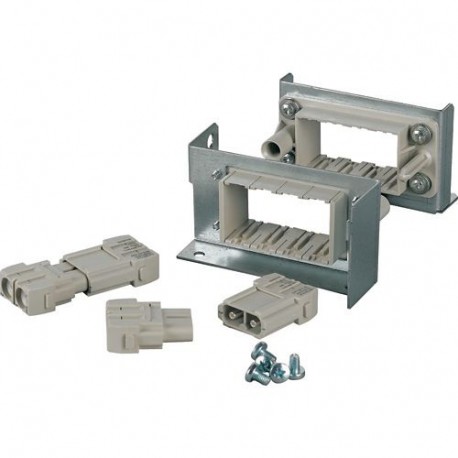

EATON - MOELLER XMW-OC-M-2 XMW-OC-M-2 152660 EATON ELECTRIC Mounting plate for output terminals 200 A x View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW-OC-M-2 152660 EATON ELECTRIC Mounting plate for output terminals 200 A x

XMW-OC-M-2

152660

EATON - MOELLER

1 Pcs.

Mounting plate;for output terminals;200 A_x XMW-OC-M-2 MCC individual components: mounting bracket for outgoer main current contacts for a current of up to 200 A, consisting of: 2 retaining brackets (1 for withdrawable unit, 1x for horizontal partition), includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller mounting plate for output terminals 200 A x provides a stable mechanical foundation for heavy-duty electrical distribution terminals. These support plates ensure safe internal spacing and secure fastening inside industrial switchgear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 120 mm
  • Height (EF000040): 45 mm
  • Depth (EF000049): 140 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲
Mounting plate; for output terminals; 200 A
MCC individual components: mounting bracket for outgoer main current contacts for a current of up to 200 A, consisting of: 2 retaining brackets (1 for withdrawable unit, 1x for horizontal partition), includes screw accessories

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
140 mm
Height
45 mm
Depth
120 mm
Max. load capacity
0 kg
Material
Metal
Colour
Stainless steel
RAL-number
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
