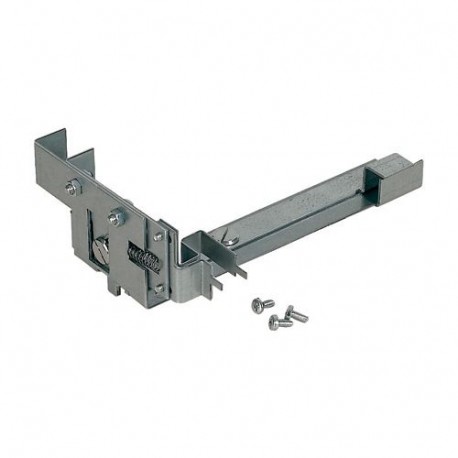

EATON - MOELLER XMW-I-3 XMW-I-3 155249 Y7-155249 EATON ELECTRIC Interlock, for drawer 150-300mm, NZM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMW-I-3 155249 Y7-155249 EATON ELECTRIC Interlock, for drawer 150-300mm, NZM

XMW-I-3

155249

Y7-155249

EATON - MOELLER

1 Pcs.

Interlock, for drawer 150-300mm, NZM XMW-I-3 MCC individual components: mechanical interlock for 450-mm drawer height, for NZM3, consisting of: push button, micro switch, mechanical parts, bowden cables, includes screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part XMW-I-3 is an interlock mechanism designed for drawer-style circuit breaker configurations to prevent unsafe operational sequences. Interlock systems improve personnel safety by ensuring proper mechanical sequencing during maintenance and switching tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 190 mm
  • Height (EF000040): 75 mm
  • Depth (EF000049): 135 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲
Interlock, for drawer 150-300mm, NZM
MCC individual components: mechanical interlock for 450-mm drawer height, for NZM3, consisting of: push button, micro switch, mechanical parts, bowden cables, includes screw accessories

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
190 mm
Height
75 mm
Depth
135 mm
Max. load capacity
0 kg
Material
Metal
Colour
Stainless steel
RAL-number
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
