View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMN440802 107986 Y7-107986 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMN440802
107986
Y7-107986
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMN440802

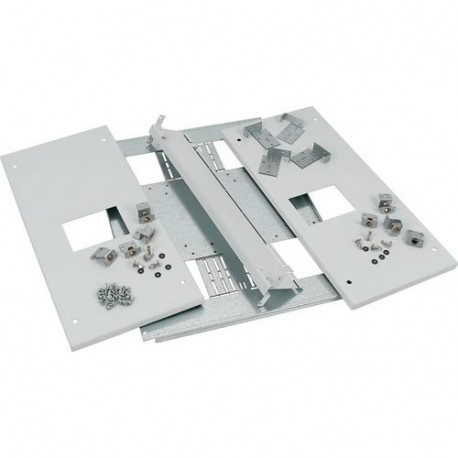

Eaton xEnergy Main LV systems LV switchgear. Mounting kit, 2xNZM4, 1600A, 4p, F/W, W=800mm, grey
Mounting kit, 2xNZM4, 1600A, 4p, F/W, W=800mm, grey
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
107986
Model Code
XMN440802
EAN
4015081076284
Product Length/Depth
670 mm
Product Height
110 mm
Product Width
720 mm
Product Weight
18 kg
Compliances
RoHS conform
Product specifications
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 720 mm |
| Height (EF000040) | 110 mm |
| Depth (EF000049) | 670 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
