View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMN4406-1 284078 Y7-284078 EATON ELECTRIC Fuse-link, low voltage, 1.25 A, AC 250 V, 10 x 38 mm, supplemental..
XMN4406-1
284078
Y7-284078
EATON - MOELLER
1 Pcs.
Fuse-link, low voltage, 1.25 A, AC 250 V, 10 x 38 mm, supplemental, UL, CSA, time-delay
XMN4406-1

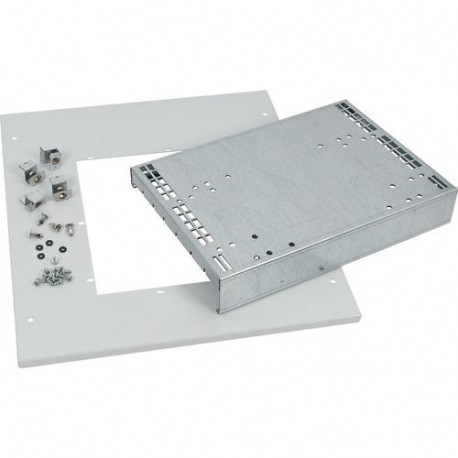

Eaton xEnergy Main LV systems LV switchgear. Mounting kit, NZM4, 1600A, 4p, withdrawable unit, W=600mm, grey
Mounting kit, NZM4, 1600A, 4p, withdrawable unit, W=600mm, grey
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284078
Model Code
XMN4406-1
EAN
4015082840785
Product Length/Depth
650 mm
Product Height
90 mm
Product Width
600 mm
Product Weight
15.8 kg
Compliances
RoHS conform
Product specifications
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 600 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 650 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
