View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMN231606CV 284017 Y7-284017 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMN231606CV
284017
Y7-284017
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMN231606CV

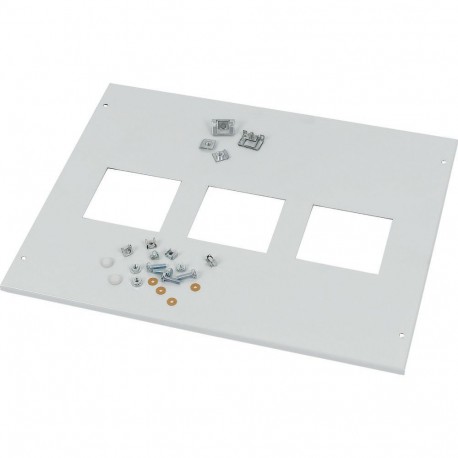

Eaton xEnergy Main LV systems LV switchgear. Front cover, +mounting kit, for NZM2, vertical, 3p, HxW=400x600mm, grey
Front cover, +mounting kit, for NZM2, vertical, 3p, HxW=400x600mm, grey
Automation > Cover / infill panel / identification strip (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284017
Model Code
XMN231606CV
EAN
4015082840174
Product Length/Depth
520 mm
Product Height
25 mm
Product Width
420 mm
Product Weight
1.8 kg
Compliances
RoHS conform
Product specifications
RAL-number
7035
Color
Gray
Material
Metal
Mounting position
Other
Model
Front plate
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Front plate |
| Width (EF000008) | 420 mm |
| Height (EF000040) | 25 mm |
| Depth (EF000049) | 520 mm |
| Mounting position (EF001664) | Other |
| Material (EF002169) | Metal |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
