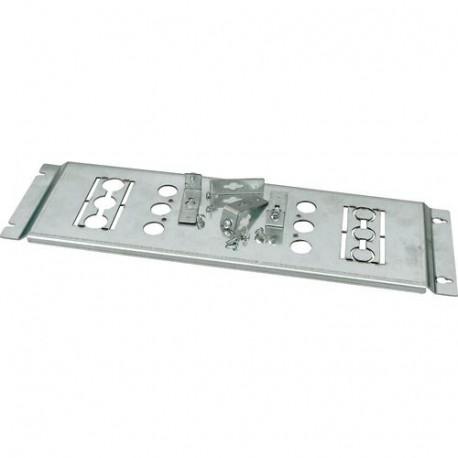

EATON - MOELLER XMN230604M XMN230604M 284012 Y7-284012 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMN230604M 284012 Y7-284012 EATON ELECTRIC Power Distribution Components Enclosure Systems

XMN230604M

284012

Y7-284012

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XMN230604M Eaton xEnergy Main LV systems LV switchgear. Mounting plate, +mounting kit, for NZM2, horizontal, 3p, HxW=150x425mm Mounting plate, +mounting kit, for NZM2, horizontal, 3p, HxW=150x425mm

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XMN230604M 284012 Y7-284012 EATON ELECTRIC Power Distribution Components Enclosure Systems is a modular distribution component engineered to support electrical bus systems and equipment mounting within industrial switchgear. Enclosure sub-assemblies help organize internal power distribution architectures safely and efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building height (EF009583): 150 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 160 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284012
Model Code
XMN230604M
EAN
4015082840129
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
160 mm
Product Weight
1.2 kg
Compliances
RoHS conform
Certifications
Contact Manufacturer

Product specifications

Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
150 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
425 mm
Material
Metal
Model
Other
