View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMN141206MV 284010 Y7-284010 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMN141206MV
284010
Y7-284010
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMN141206MV

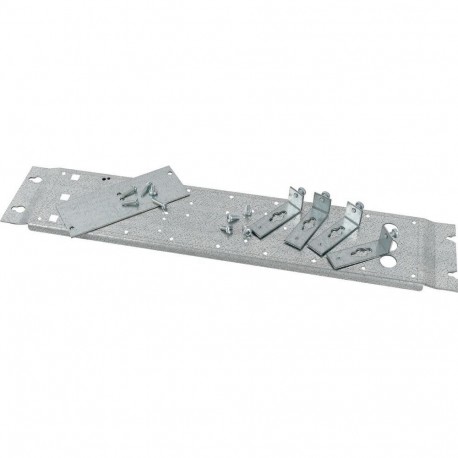

Eaton xEnergy Main LV systems LV switchgear. Mounting plate, +mounting kit, for NZM1, vertical, 4p, HxW=300x600mm
Mounting plate, +mounting kit, for NZM1, vertical, 4p, HxW=300x600mm
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284010
Model Code
XMN141206MV
EAN
4015082840105
Product Length/Depth
520 mm
Product Height
30 mm
Product Width
320 mm
Product Weight
2.6 kg
Compliances
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
300 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building height (EF009583) | 300 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 320 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 520 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
