EATON - MOELLER XMMC1604C XMMC1604C 283991 Y7-283991 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XMMC1604C 283991 Y7-283991 EATON ELECTRIC Power Distribution Components Enclosure Systems

XMMC1604C

283991

Y7-283991

EATON - MOELLER

1 Pcs.

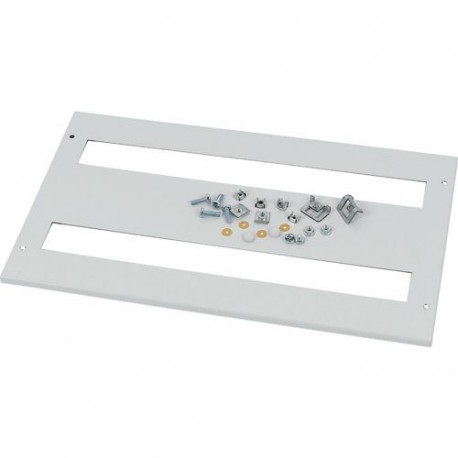

Power Distribution Components Enclosure Systems XMMC1604C Eaton xEnergy Main LV systems LV switchgear. Front cover, +mounting kit, for FAZ, vertical, HxW=400x425mm, grey Front cover, +mounting kit, for FAZ, vertical, HxW=400x425mm, grey

Automation > Front plate (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power Distribution Components Enclosure Systems equipment from Eaton Moeller, specifically model XMMC1604C, forms the structural foundation of electrical control centers and industrial switchboards. These enclosure accessories help configure secure mounting environments for complex circuit protection hardware.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 410 mm
  • Height (EF000040): 25 mm
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building height (EF009583): 400 mm
  • Number of height units (EF003561): 0
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283991
Model Code
XMMC1604C
EAN
4015082839918
Product Length/Depth
520 mm
Product Height
25 mm
Product Width
410 mm
Product Weight
1.1 kg
Compliances
RoHS conform

Product specifications

Number of height units
0
Suitable for enclosure building height
400 mm
Suitable for enclosure building width
425 mm
Surface finishing
Powder coating
Material
Steel

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
