XMMC0804M 283984 Y7-283984 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMMC0804M
283984
Y7-283984
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMMC0804M

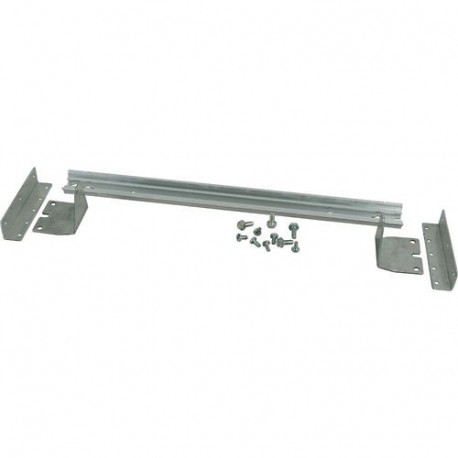

Eaton xEnergy Main LV systems LV switchgear. Mounting plate, +mounting kit, for FAZ, vertical, HxW=200x425mm
Mounting plate, +mounting kit, for FAZ, vertical, HxW=200x425mm
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283984
Model Code
XMMC0804M
EAN
4015082839840
Product Length/Depth
350 mm
Product Height
60 mm
Product Width
100 mm
Product Weight
0.9 kg
Compliances
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
200 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
425 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building height (EF009583) | 200 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 100 mm |
| Height (EF000040) | 60 mm |
| Depth (EF000049) | 350 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
