View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMG231606MV 283954 Y7-283954 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMG231606MV
283954
Y7-283954
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMG231606MV

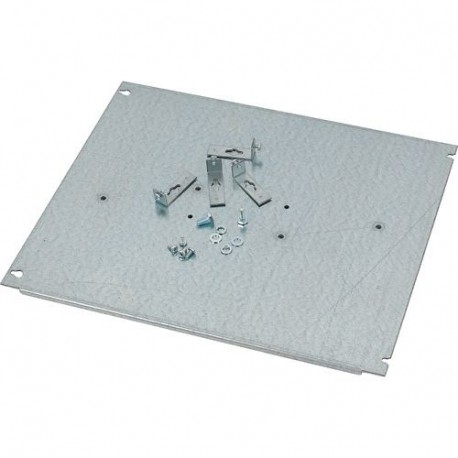

Eaton xEnergy Main LV systems LV switchgear. Mounting plate, +mounting kit, for GS 2, vertical, 3p, HxW=400x600mm
Mounting plate, +mounting kit, for GS 2, vertical, 3p, HxW=400x600mm
Automation > Mounting plate for distribution board
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283954
Model Code
XMG231606MV
EAN
4015082839543
Product Length/Depth
520 mm
Product Height
30 mm
Product Width
420 mm
Product Weight
3.3 kg
Compliances
RoHS conform
Product specifications
Features
Perforated
Surface protection
Galvanized
Material
Steel
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Width (EF000008) | 420 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanised |
| Perforated (EF000115) | Yes |
