View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XMG031206MV 283952 Y7-283952 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMG031206MV
283952
Y7-283952
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMG031206MV

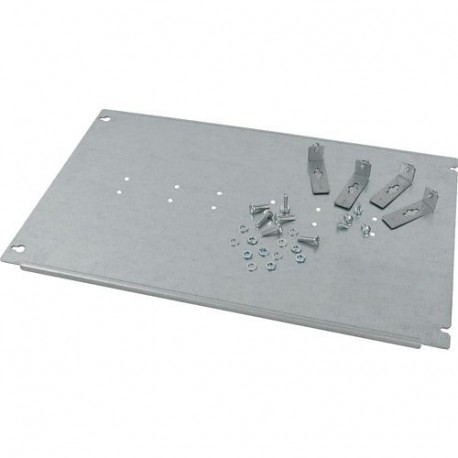

Eaton xEnergy Main LV systems LV switchgear. Mounting plate, +mounting kit, for GS00, vertical, 3p, HxW=300x600mm
Mounting plate, +mounting kit, for GS00, vertical, 3p, HxW=300x600mm
Automation > Mounting plate for distribution board
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283952
Model Code
XMG031206MV
EAN
4015082839529
Product Length/Depth
486 mm
Product Height
20 mm
Product Width
298 mm
Product Weight
2.6 kg
Compliances
RoHS conform
Product specifications
Features
Perforated
Surface protection
Galvanized
Material
Steel
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 20 mm |
| Width (EF000008) | 298 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanised |
| Perforated (EF000115) | Yes |
