XMBD 283921 Y7-283921 EATON ELECTRIC Power Distribution Components Enclosure Systems
XMBD
283921
Y7-283921
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XMBD

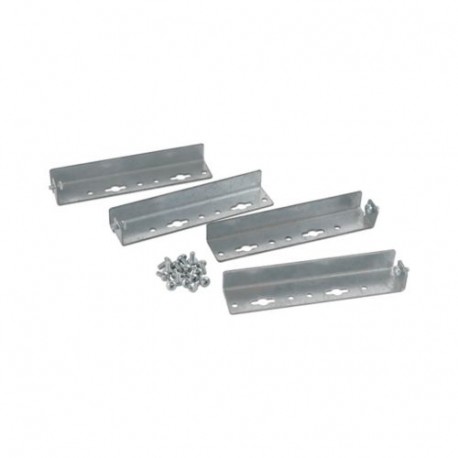

Eaton xEnergy Main LV systems LV switchgear. Bracket for outg. W. remote operator and/or plug-in / withdrawable unit
deep mounting bracket, mounting kit, including mounting material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283921
Model Code
XMBD
EAN
4015082839215
Product Length/Depth
210 mm
Product Height
30 mm
Product Width
45 mm
Product Weight
0.61 kg
Compliances
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 210 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
