View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XDSSH16 283899 Y7-283899 EATON ELECTRIC Power Distribution Components Enclosure Systems
XDSSH16
283899
Y7-283899
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XDSSH16

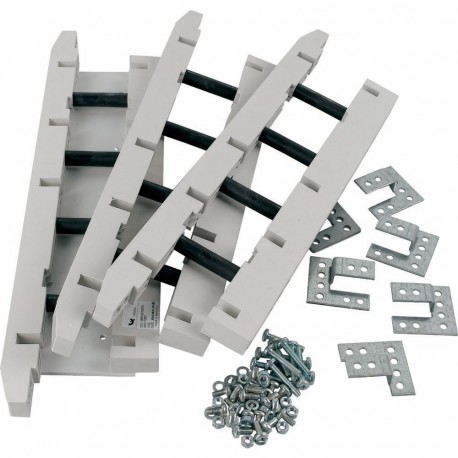

Eaton xEnergy Main LV systems LV switchgear. Mounting kit, for dropper bar, PIFT, horizontal, 1600A, 3p
Mounting kit, for dropper bar, PIFT, horizontal, 1600A, 3p, including fixing material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283899
Model Code
XDSSH16
EAN
4015082838997
Product Length/Depth
600 mm
Product Height
80 mm
Product Width
160 mm
Product Weight
3.8 kg
Compliances
RoHS conform
Product specifications
Color
White
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 160 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 600 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 0 |
